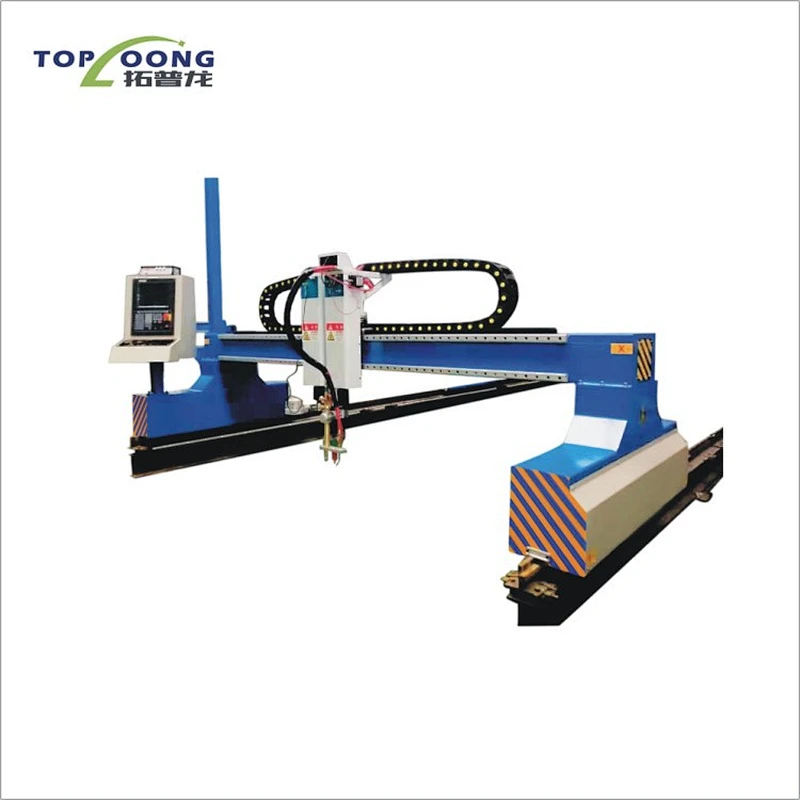

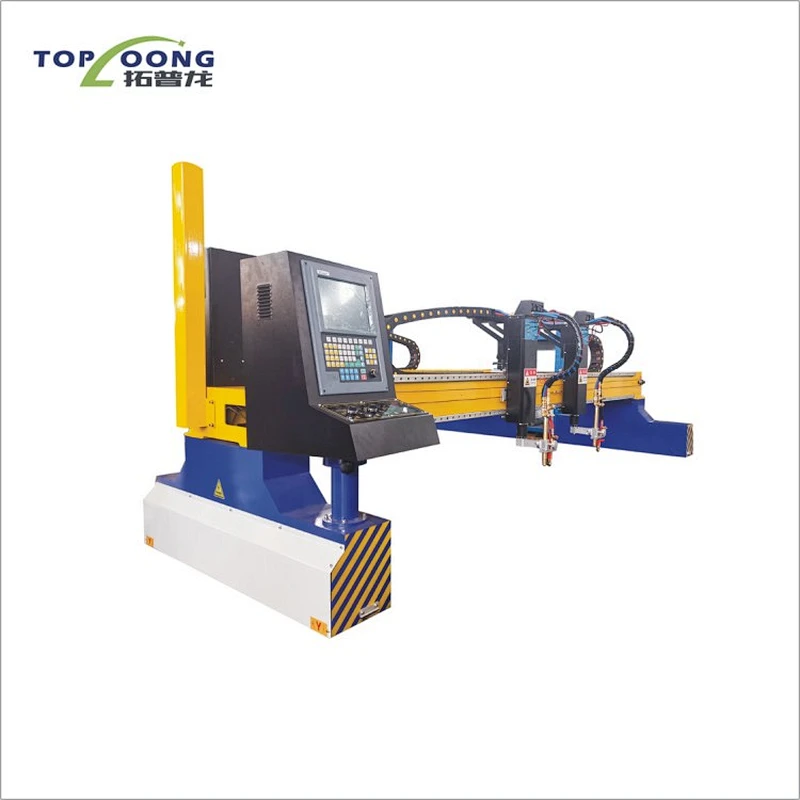

This type of cutting machine has a gantry structure with a horizontal span of 3m, 4m, 5m, 6m, 8m and other specifications. All of them adopt bilateral drive, stable operation, good configuration, and high work efficiency. It can be used for various carbon steels. , Stainless steel and other metal materials of large, medium and small steel plates blanking. It can also be equipped with multiple cutting torches according to the requirements of the household, or configured as a dual-purpose cutting method for special-shaped cutting and straight cutting, and optional capacitor or plasma automatic height adjustment system
Structure characteristics:
1. Crossbeam: It adopts square tube butt welding structure, which has the characteristics of good rigidity, high precision, light weight and small inertia. The stress relief treatment effectively prevents structural deformation.
2. Longitudinal and lateral drive: Both use precision rack and pinion (7-level precision) transmission. The horizontal guide rail adopts the linear guide rail of Taiwan Province, and the longitudinal guide rail is made of precision machined special steel rail, which ensures the smooth running of the cutting machine, high precision, durability, clean and beautiful appearance; planetary gear reducer is used for speed reduction, which can be perfect Ensure the accuracy and balance of the movement.
3. Longitudinal drive frame (end frame): Both ends are equipped with horizontal guide wheels, which can adjust the pressing degree of the eccentric wheel at the bottom of the drive frame to the guide rail, so that the whole machine can maintain stable guidance during movement. Equipped with a dust collector to sweep away the debris accumulated on the surface of the guide rail at any time.
4. The drive system is a domestic stepper drive, and the world's top product-imported Japanese Panasonic AC servo drive/domestic servo drive can be selected according to user needs, so that the whole machine runs more smoothly, the speed range is wider, and the acceleration time is shorter.
5. The lifting body adopts aluminum alloy structure, the lifting guide adopts linear guide rail, and the lifting lifting adopts ball screw lifting.
6. The easy-to-use automatic programming system makes CNC programming no longer complicated and easy.
1. Gantry CNC plasma cutting machine is widely used in automobiles, locomotives, pressure vessels, and chemical machinery.
2. It is suitable for various industries such as nuclear industry, general machinery, construction machinery, steel structure and so on.
